50 Amp Generator Inlet & Circuit Installation – Cape Coral, FL

PROJECT DESCRIPTION: 50 AMP GENERATOR INLET INSTALLATION – CAPE CORAL, FL

We recently completed a 50 amp generator inlet installation for a residential client in Cape Coral, FL 33904. This project was designed to provide the homeowner with a safe, code-compliant connection point for a portable generator in case of power outages.

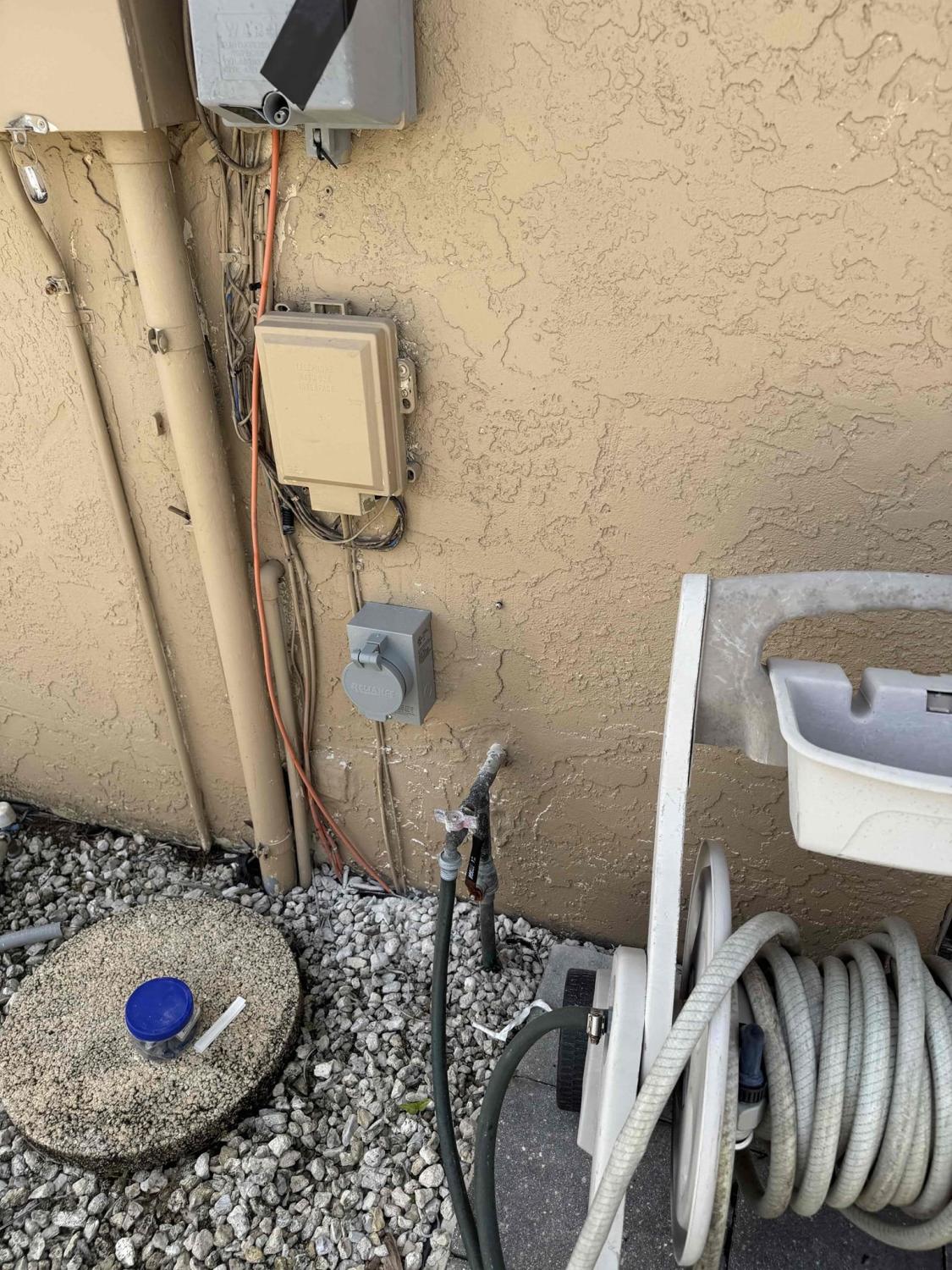

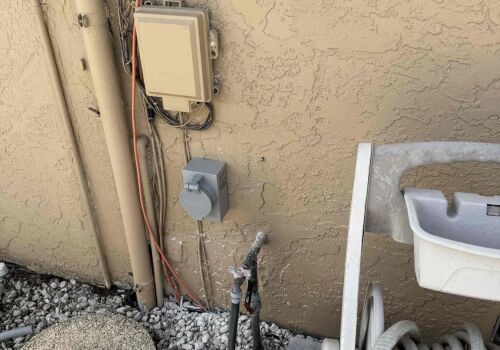

• Installed New 50 Amp Generator Inlet
  • Supplied and installed a heavy-duty 50 amp generator power inlet box on the exterior of the home.
  • Mounted the inlet in a weather-resistant location per NEC and manufacturer specifications.
• Ran New 50 Amp Circuit
  • Installed new schedule 40 PVC conduit from the main panel to the inlet location.
  • Added a surface-mounted junction box at the transition point for a clean, professional layout.
  • Continued conduit run from junction box to exterior inlet.

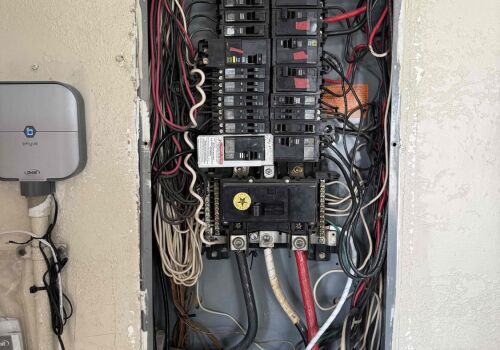

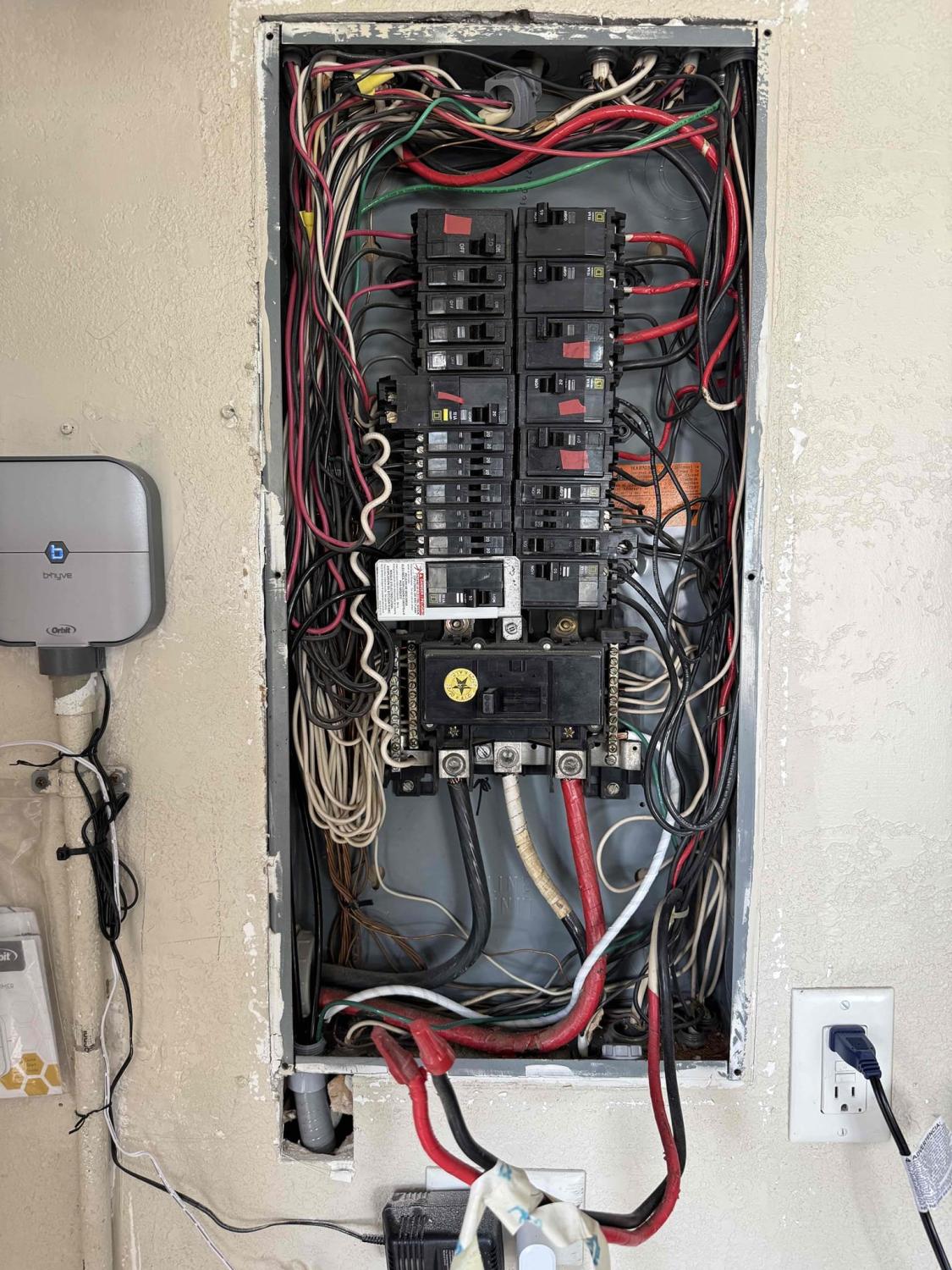

• Panel Modifications
  • Installed two (2) QO 20 amp tandem breakers to free up necessary panel space.
  • Added one (1) new QO 2-pole 50 amp breaker dedicated to the generator inlet.

The homeowner now has a robust, weather-protected 50 amp inlet for generator hookup, complete with a dedicated breaker and properly sized wiring. The installation meets all NEC standards, ensuring safety during use and reliability when it matters most.

How long did this job take?
The complete installation, including panel modifications, conduit runs, and inlet mounting, took about 4.5 hours.

Why use schedule 40 PVC conduit?
Schedule 40 PVC is durable, UV-resistant, and meets NEC requirements for exterior electrical runs.

Will this work with any generator?
This inlet is designed for portable generators with a 50 amp output. The homeowner should use the correct power cord and transfer setup.

Was the panel at capacity before the install?
Yes — we created space by using tandem breakers, ensuring the new 50 amp breaker fit without compromising safety.

Is the installation up to code?
Absolutely. All work was performed to NEC standards and local Cape Coral permitting requirements.
