PROJECT DESCRIPTION: DEDICATED 240V POOL TIMER CIRCUIT – NAPLES, FL

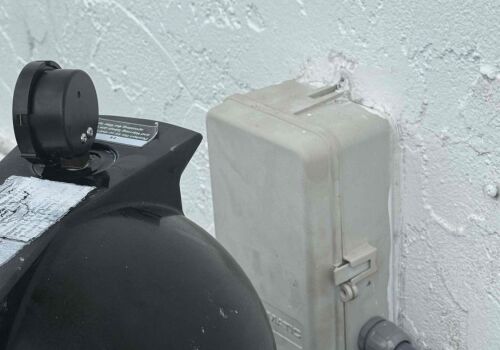

We recently completed a pool wiring project in Naples, FL 34102, where we installed a dedicated 240V 20-amp circuit from the main electrical panel directly to the pool timer. This upgrade ensures the pool pump motor has its own safe, code-compliant power source, meeting all 2020 NEC requirements.

• Installed a dedicated 240V 20-amp circuit from the home’s main panel to the pool timer
• Provided and installed a GFCI-protected breaker in compliance with 2020 NEC requirements for pool pump motors
• Routed wire from the attic to the soffit, then used electrical conduit to safely bring the wiring down to the pool timer location
• Used high-quality, weather-resistant conduit, fittings, and labels for long-term safety and reliability
• Labeled the new breaker in the panel for easy identification and maintenance
• Verified correct operation of the pool timer and pump after installation

The homeowner now has a fully dedicated, GFCI-protected circuit for their pool timer, ensuring safety, improved electrical performance, and compliance with the latest code requirements. The system is clearly labeled, making it easy for future service or upgrades.

How long did this pool timer installation take?
The entire job, including setup, wiring, and cleanup, took approximately 4 hours.

Why does a pool pump motor need GFCI protection?
The 2020 NEC requires GFCI protection for pool pump motors to reduce the risk of electric shock in wet environments.

Will this circuit affect other electrical loads?
No. This is a dedicated circuit, meaning the pool pump has its own power supply without sharing with other appliances.

What happens if the GFCI trips?
If the GFCI breaker trips, it will immediately shut off power to the pool pump for safety. Resetting is as simple as flipping the breaker back on after addressing the cause.

Does CoHarbor Electric install other pool and spa wiring?
Yes — we handle pool heater and spa wiring, dock and marine wiring, and more.
