50-Amp Generator Inlet & Whole-Home Surge Protector Installation – Cape Coral, FL

PROJECT DESCRIPTION: 50-AMP GENERATOR INLET & WHOLE-HOME SURGE PROTECTOR INSTALLATION – CAPE CORAL, FL

We recently performed a complete installation to support safe use of a portable generator and provide whole-home surge protection at a residence in Cape Coral, FL. This upgrade ensures the homeowner has reliable backup power during outages and protection against damaging power surges.

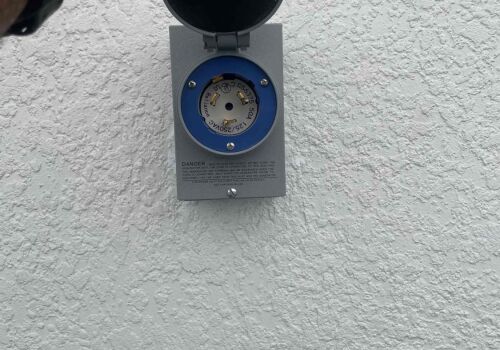

• Installed (1) 50A Generator Inlet
  Mounted a weatherproof NEMA 3R generator inlet box on the exterior of the home for safe, manual generator connection.
• Installed (1) 50A Double Pole Breaker
  Added a dedicated 50-amp breaker to the existing panel to feed the inlet.
• Installed Dedicated Circuit in PVC Conduit
  Routed wiring from the main panel to the inlet box using Schedule 40 PVC conduit, including fittings, junction boxes, and weather sealing.

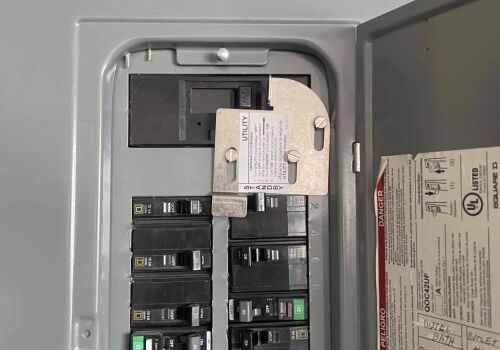

• Installed Generator Interlock Kit
  Fitted a panel-specific interlock kit to prevent backfeeding and allow safe manual switching between utility power and generator supply.
• Installed Whole-Home Surge Protector
  Mounted and wired a surge protective device (SPD) to safeguard the home’s electrical system from power spikes and surges.

The homeowner now has peace of mind knowing they can safely connect a portable generator during outages without risking backfeeding or code violations. In addition, the whole-home surge protector provides long-term protection for appliances and electronics from voltage spikes.

How long does a generator inlet installation take?
This type of project usually takes between 4–6 hours, depending on panel location and conduit routing.

Why use an interlock kit instead of a transfer switch?
An interlock kit is a cost-effective, panel-specific solution that safely prevents backfeeding while allowing manual switching. It’s fully NEC-compliant when installed properly.

Is a surge protector really necessary if I have a generator?
Yes. A surge protector safeguards your entire home against power spikes from storms, utility fluctuations, or even generator startup surges.

Can this system handle a whole-home generator?
This setup is designed for portable generators. For a whole-home standby generator, we’d recommend a dedicated generator installation service.

Do I need to maintain the surge protector?
Most surge protectors are maintenance-free but should be inspected periodically during routine electrical service.
